The Bolton Technical Blade - 5G Cellular Vehicle Antenna
High-Performing and Truly Customizable
The Bolton Blade 5G Cellular Antenna does not discriminate. It is the ideal cellular antenna for ALL types of vehicles.

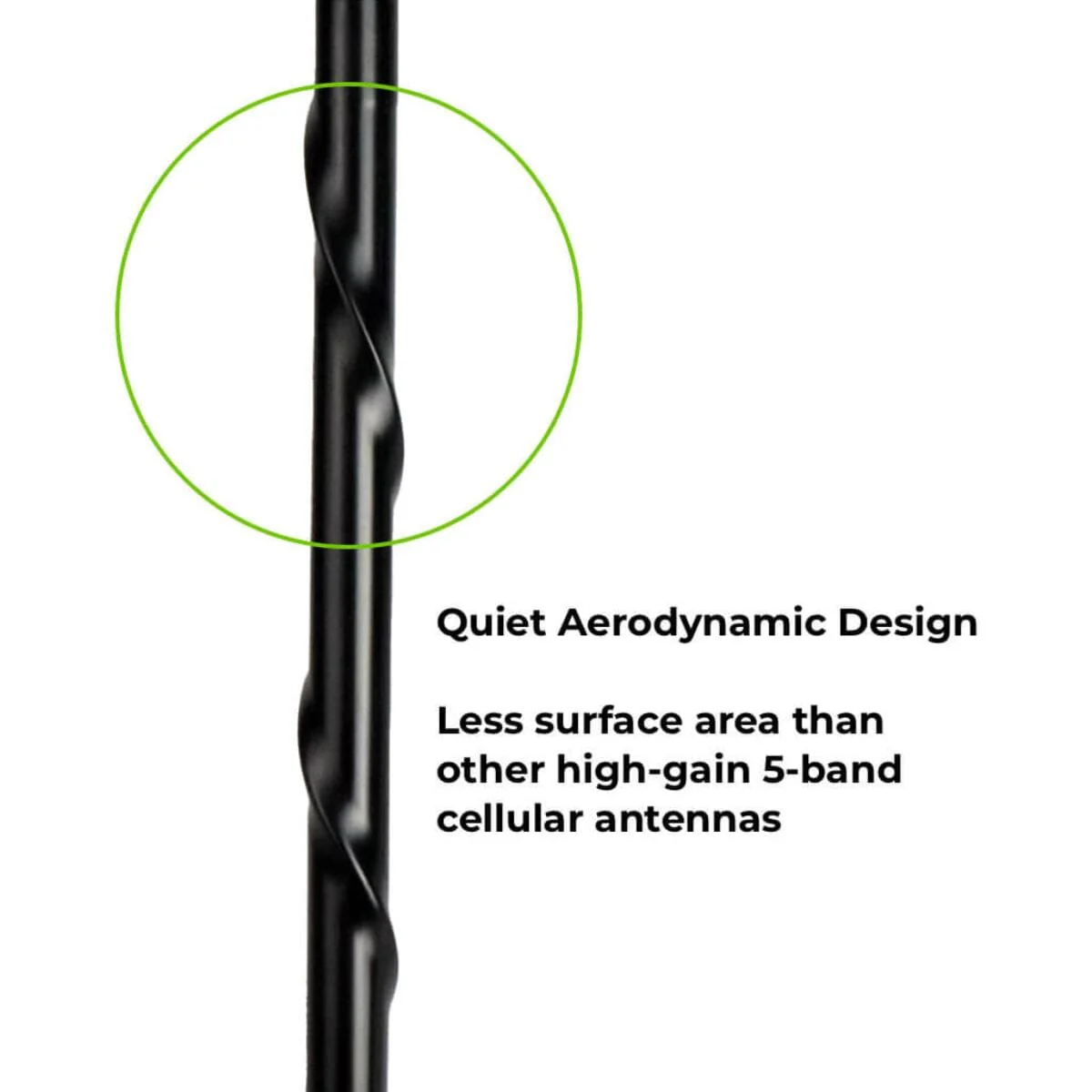

Unique design cuts through the wind like butter (hence the name) for optimal performance. As you're zooming down the highway, the whistle-free wrap eliminates that annoying whistle that is common among other vehicular antennas. Couple that with its sturdy fiberglass mast, and the antenna won’t bounce around while moving down the road. It stays vertical to send and receive the strongest cell signal.

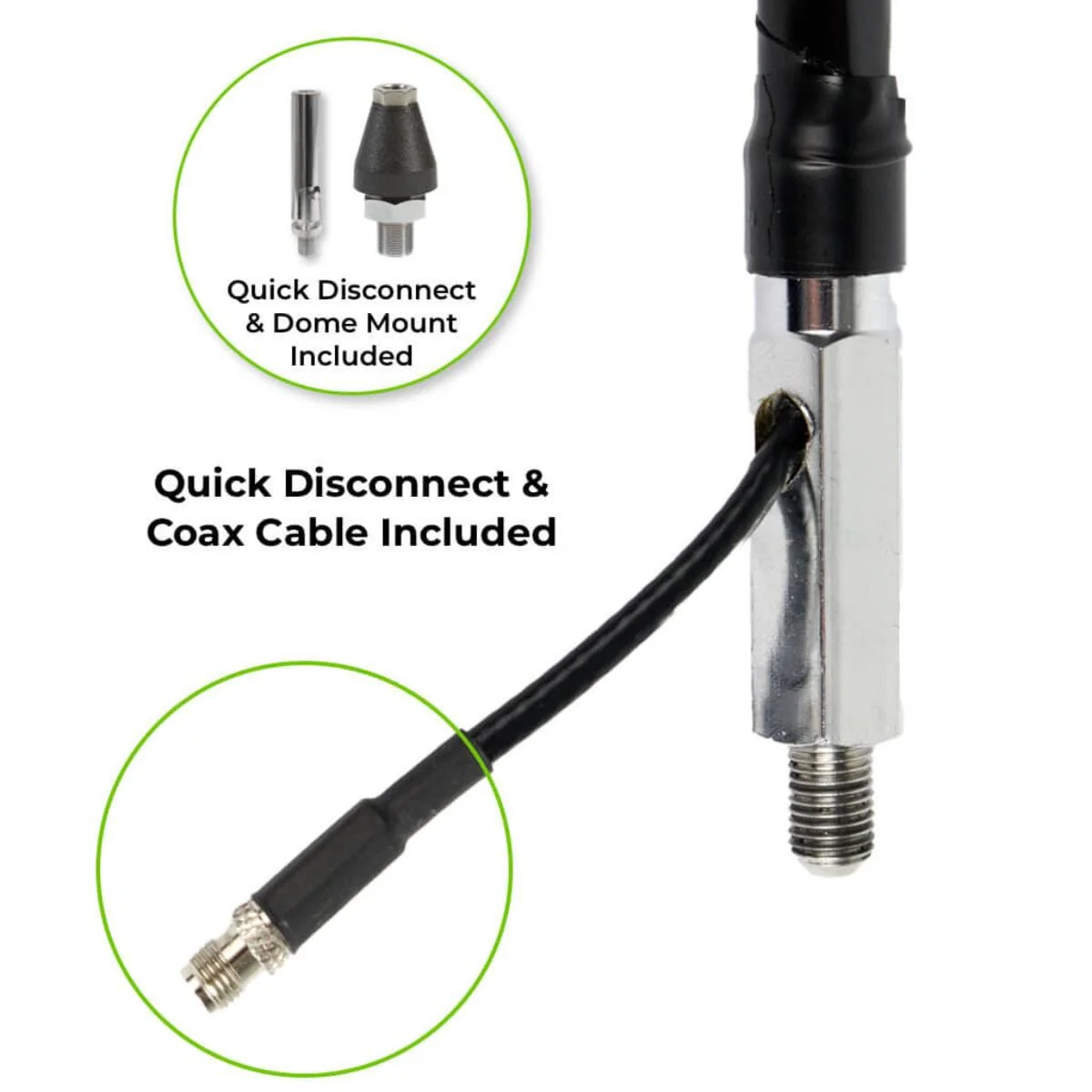

Terminated with an SMA-Female connector, the antenna can connect to virtually any cellular amplifier or cellular device with external antenna connectivity.

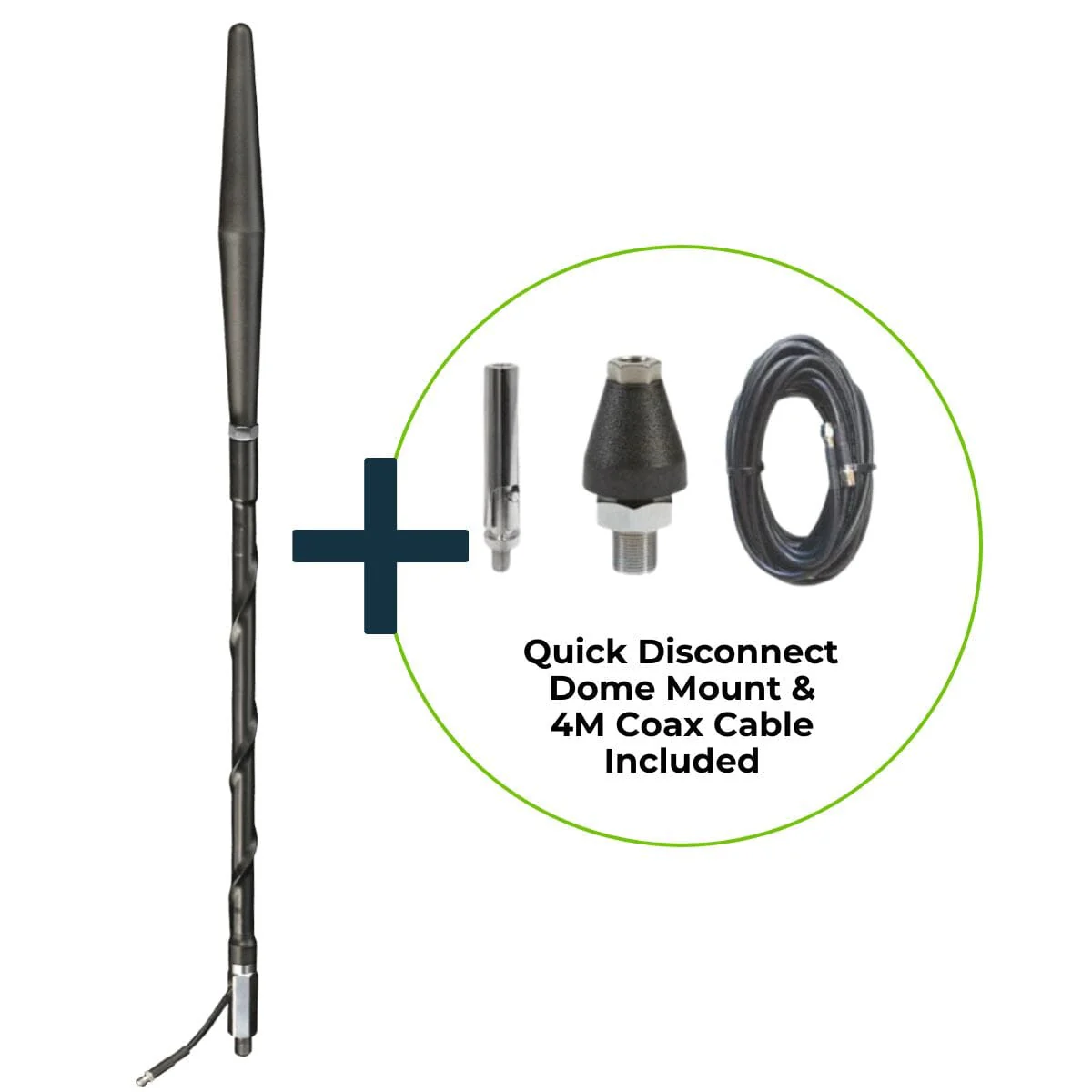

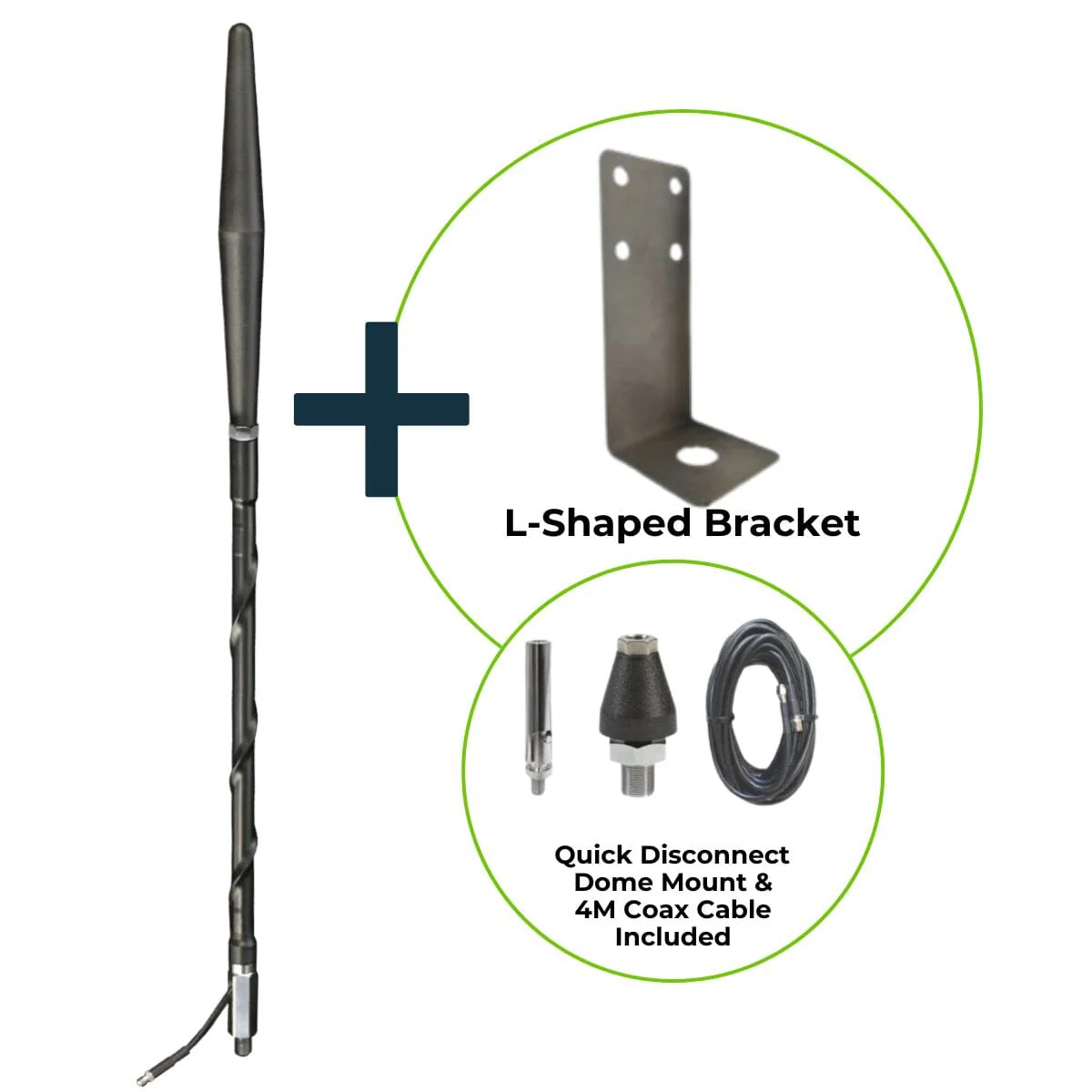

The mounting options for this antenna are insane. You can mount it on the roof, side mirror, toolbox, or you can get a custom mount for your specific truck (sold separately).
Choose the kit that best suits your vehicle and then pair it with our weBoost Drive AM100-Pro cellular signal boosters, and enjoy stronger cell signal on the go.
Specs
Blade Antenna Frequencies & Gains
| Item No. | BT151885 |
| Frequency Range and Typical Gain |
600 MHz - -6.4 dBi, 698-806 MHz - 2.7 dbi, 806-960 MHz - 2.1 dBi, 1710-1880 MHz - 4.4 dBi, 1850-1990 MHz - 2.7 dBi, 1910-2170 MHz - 2.4 dBi, 2300-2700 MHz - 3.9 dBi, 3600-3750 MHz - 2.3 dBi |
| Max Gain | 4.4 dBi |
| Input Impedance | 50 Ohm |
| Polarization Type | Vertical |
| Connector Type | SMA-Male to FME-Female |
| Antenna Length | 597 mm |
| Coax Cable Length | 38 mm |
More Images
The Bolton Technical Blade - 5G Cellular Vehicle Antenna
High-Performing and Truly Customizable
The Bolton Blade 5G Cellular Antenna does not discriminate. It is the ideal cellular antenna for ALL types of vehicles.
Unique design cuts through the wind like butter (hence the name) for optimal performance. As you're zooming down the highway, the whistle-free wrap eliminates that annoying whistle that is common among other vehicular antennas. Couple that with its sturdy fiberglass mast, and the antenna won’t bounce around while moving down the road. It stays vertical to send and receive the strongest cell signal.
Terminated with an SMA-Female connector, the antenna can connect to virtually any cellular amplifier or cellular device with external antenna connectivity.
The mounting options for this antenna are insane. You can mount it on the roof, side mirror, toolbox, or you can get a custom mount for your specific truck (sold separately).
Choose the kit that best suits your vehicle and then pair it with our weBoost Drive AM100-Pro cellular signal boosters, and enjoy stronger cell signal on the go.
Specs
Blade Antenna Frequencies & Gains
| Item No. | BT151885 |
| Frequency Range and Typical Gain |
600 MHz - -6.4 dBi, 698-806 MHz - 2.7 dbi, 806-960 MHz - 2.1 dBi, 1710-1880 MHz - 4.4 dBi, 1850-1990 MHz - 2.7 dBi, 1910-2170 MHz - 2.4 dBi, 2300-2700 MHz - 3.9 dBi, 3600-3750 MHz - 2.3 dBi |
| Max Gain | 4.4 dBi |
| Input Impedance | 50 Ohm |
| Polarization Type | Vertical |
| Connector Type | SMA-Male to FME-Female |
| Antenna Length | 597 mm |
| Coax Cable Length | 38 mm |
