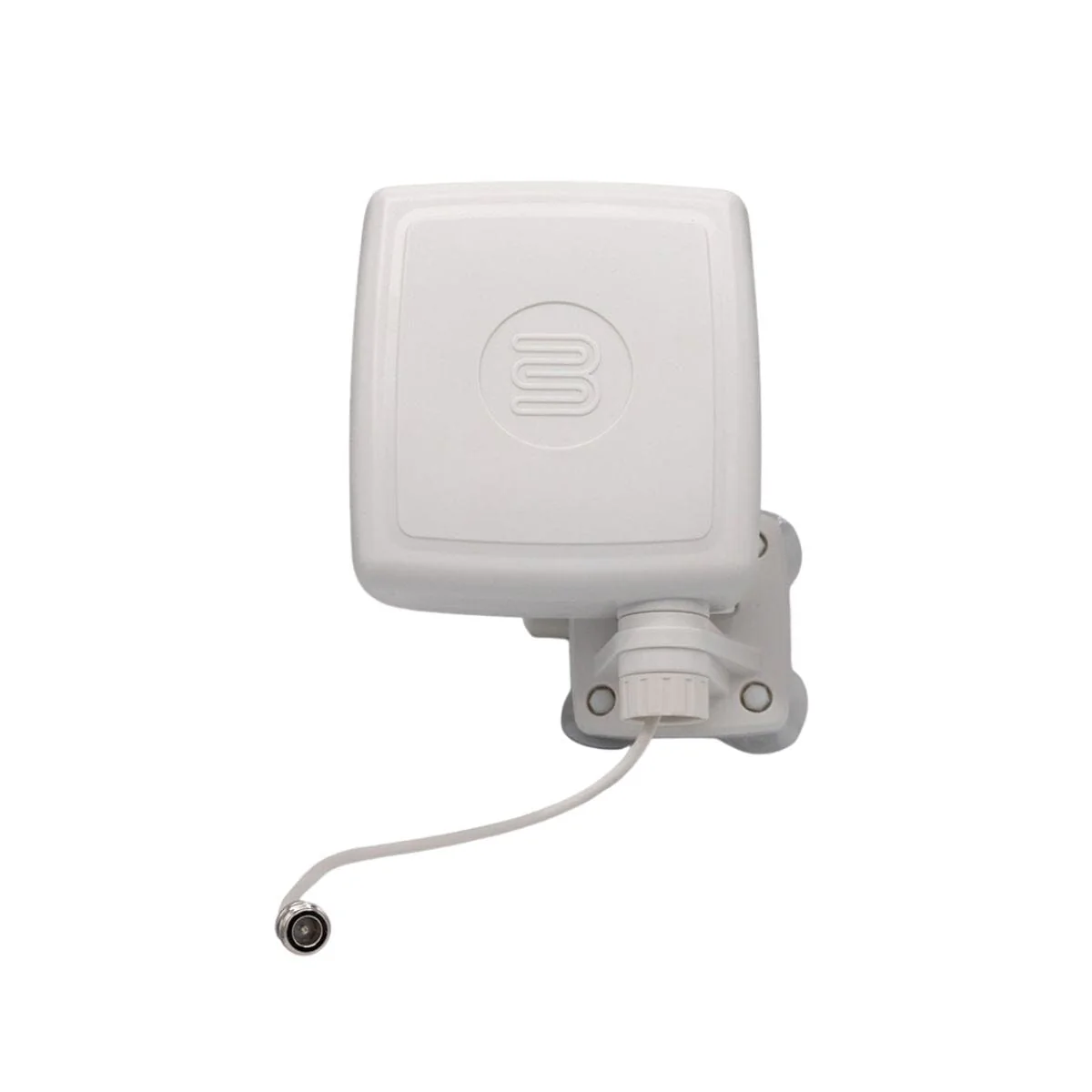

The Beacon | 5G Directional Cellular Antenna w/ Suction Cups
The Beacon: Your ultimate solution for superior cellular signal strength and reliability.
At the heart of The Beacon is its cutting-edge design, meticulously crafted to deliver unparalleled performance. As a 50 Ohm Bolton Beacon Window Mount Directional Cellular Antenna, The Beacon sets the standard for excellence in signal reception and transmission. Whether you're at home, in the office, or on the road, The Beacon ensures that you stay connected at all times. Its innovative window mount design allows for easy installation on any window surface, providing optimal signal reception even in challenging environments. Constructed with durability in mind, The Beacon is built to withstand the rigors of daily use and various environmental conditions. From scorching summer heat to bitter winter cold, you can rely on The Beacon to deliver consistent performance when you need it most.
Key Features:
- Suction to window for easy, no-tool installation
- Up to +7 dBi of gain for 50-Ohm systems
- Directional, 90-degree aiming cone w/ swiveling action
- Sleek, all-weather design for any environmental conditions
Elevate Your Connection
The Beacon 5G is a 50 Ohm two-way directional cellular antenna. Whether indoors or outdoors, this versatile antenna is ready to amplify 4G and 5G cellular signals across frequencies 617-4000 MHz. It’s perfectly crafted for use with signal boosters, routers, and other cellular RF devices.
Superior Cellular Reception for All
The Beacon 5G delivers wideband support, ensuring superior 4G and C-Band 5G cellular signals across the frequency range 617-4000 MHz for all South African carriers (Vodacom, MTN, Cell C, Telkom, etc.).
Simple Installation, Powerful Results

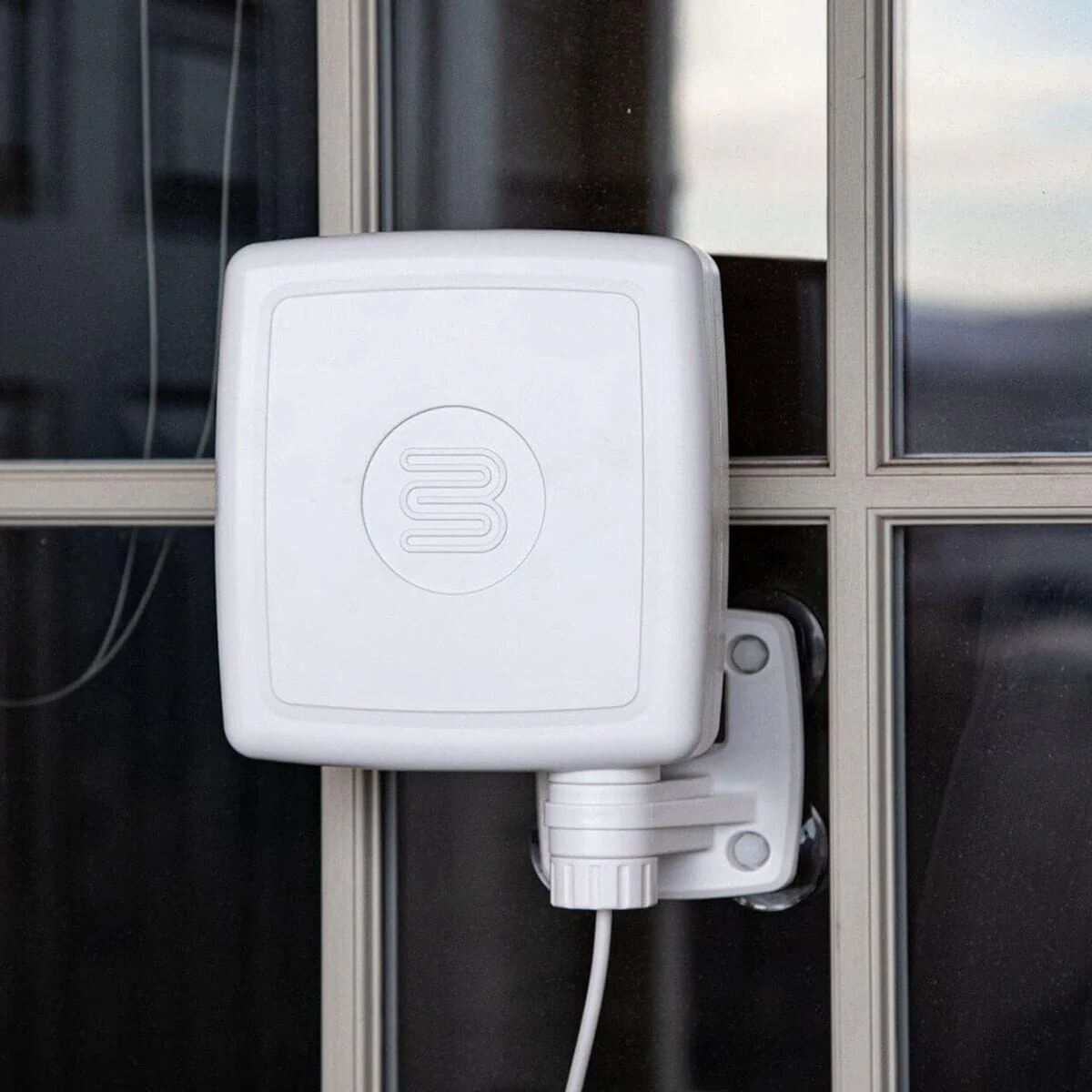

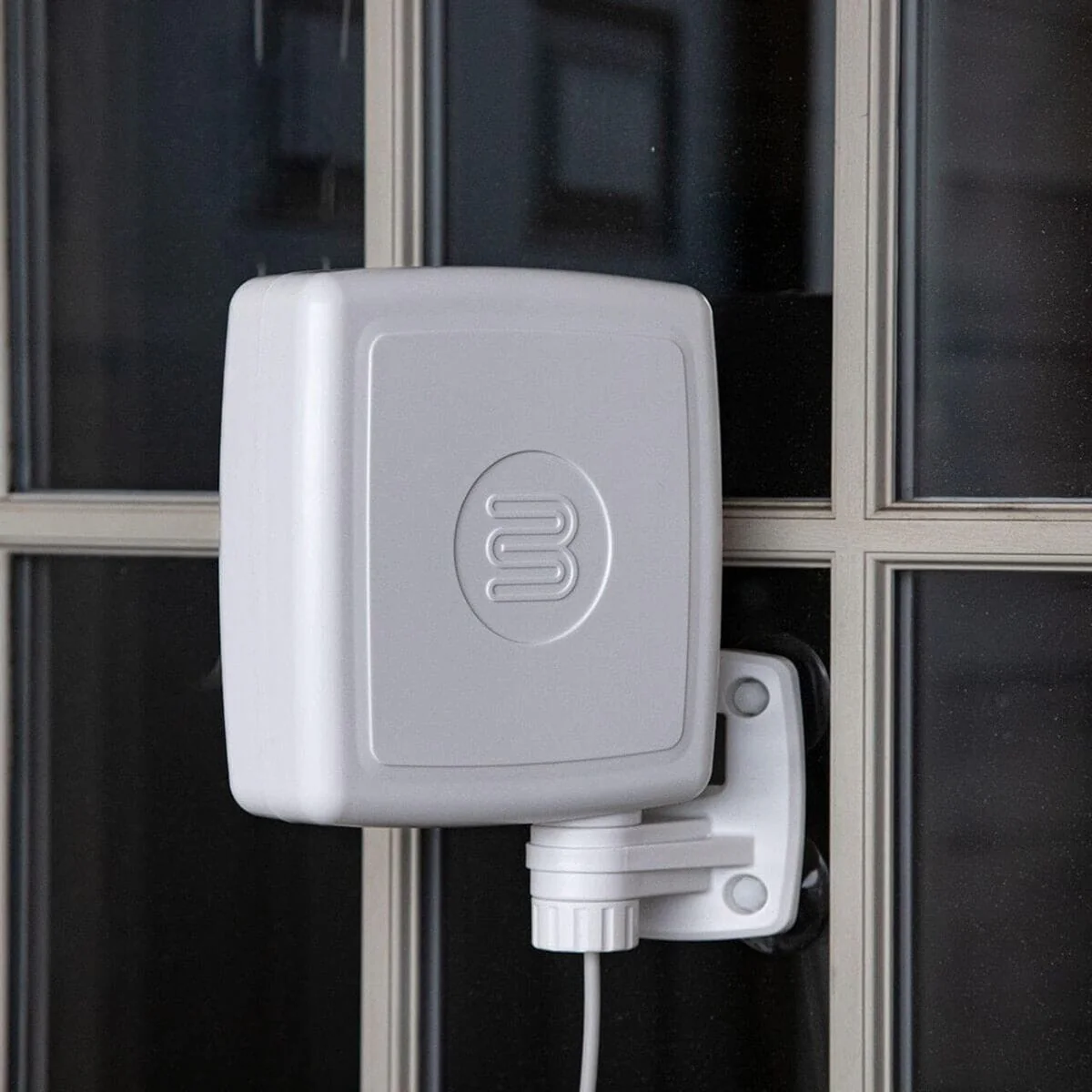

Featuring three mounting options, it's easy to set up the Beacon 5G. The suction cup mount enables indoor or outdoor window installation tool-free, perfect for apartments and RVs. It can also be fixed to a wall or pole. The adjustable base lets you precisely point the antenna at your nearest cell tower for optimal performance.
High Gain Directional Antenna
The Beacon 5G provides up to +7 dB of gain, designed to attach to a cell phone signal booster or directly to a cellular router to improve 4G LTE and 5G signal strength and speeds.
About the Bolton Beacon 5G Directional Antenna
The Bolton Beacon 5G is a two-way directional antenna for either indoor or outdoor use, boosting any cellular signal in the 617-4000 MHz frequency range.
We offer two configurations for the Beacon 5G:
- 6 m of attached cable w/ N-Male termination (BT684212)
- 1.8 m of attached cable w/ N-Female termination (BT684205)
All variants come with a swivel platform for easy aiming, with suction cups for easy install.

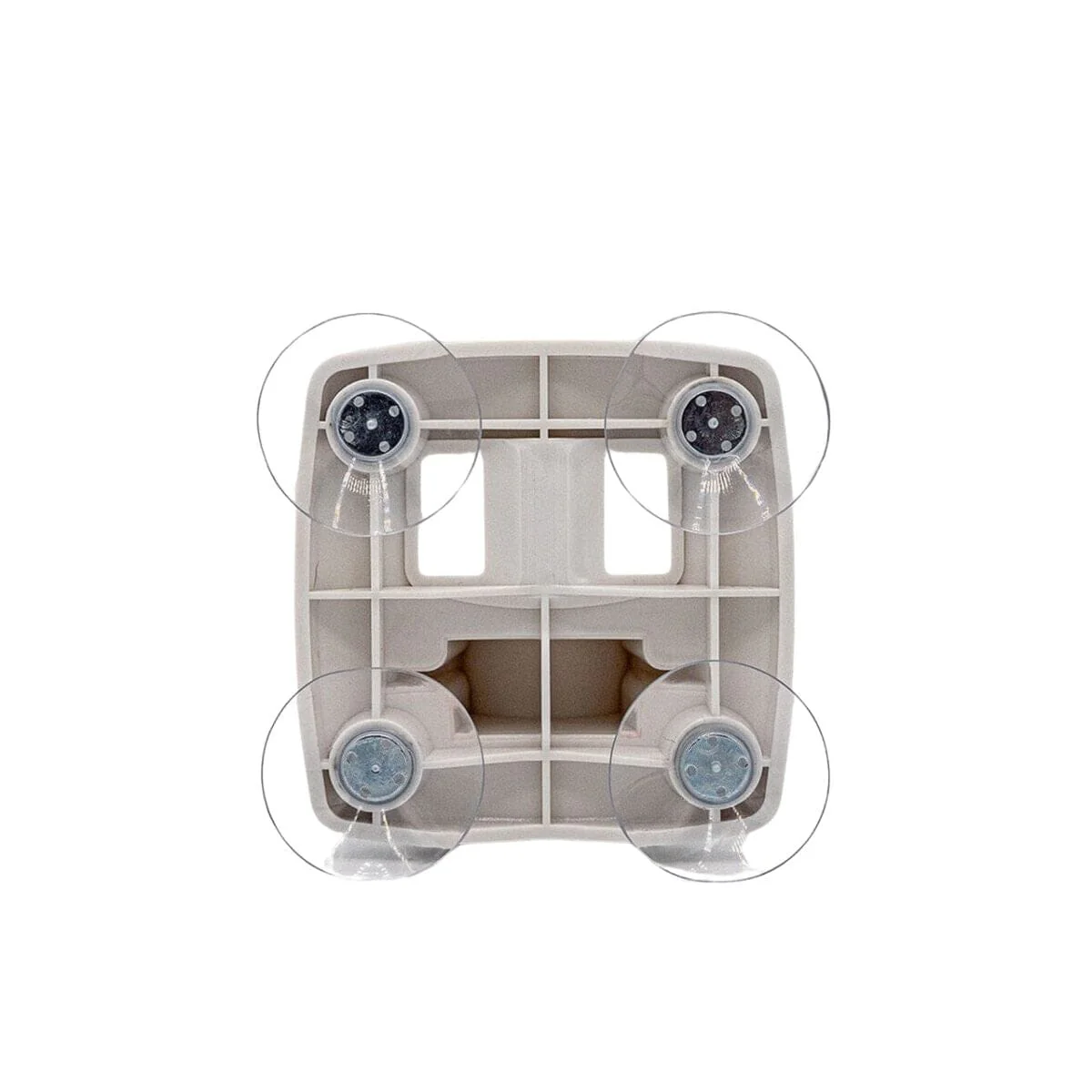

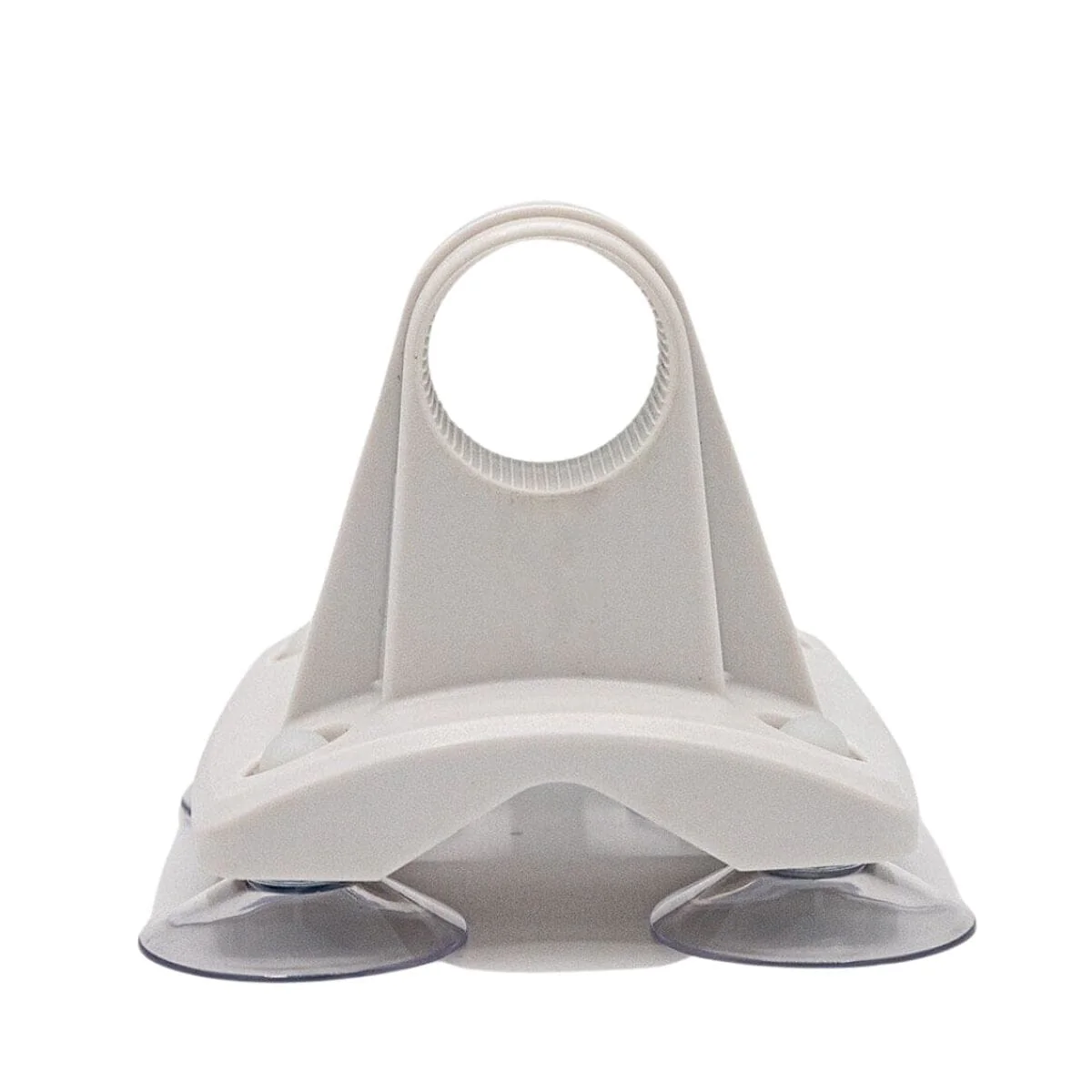

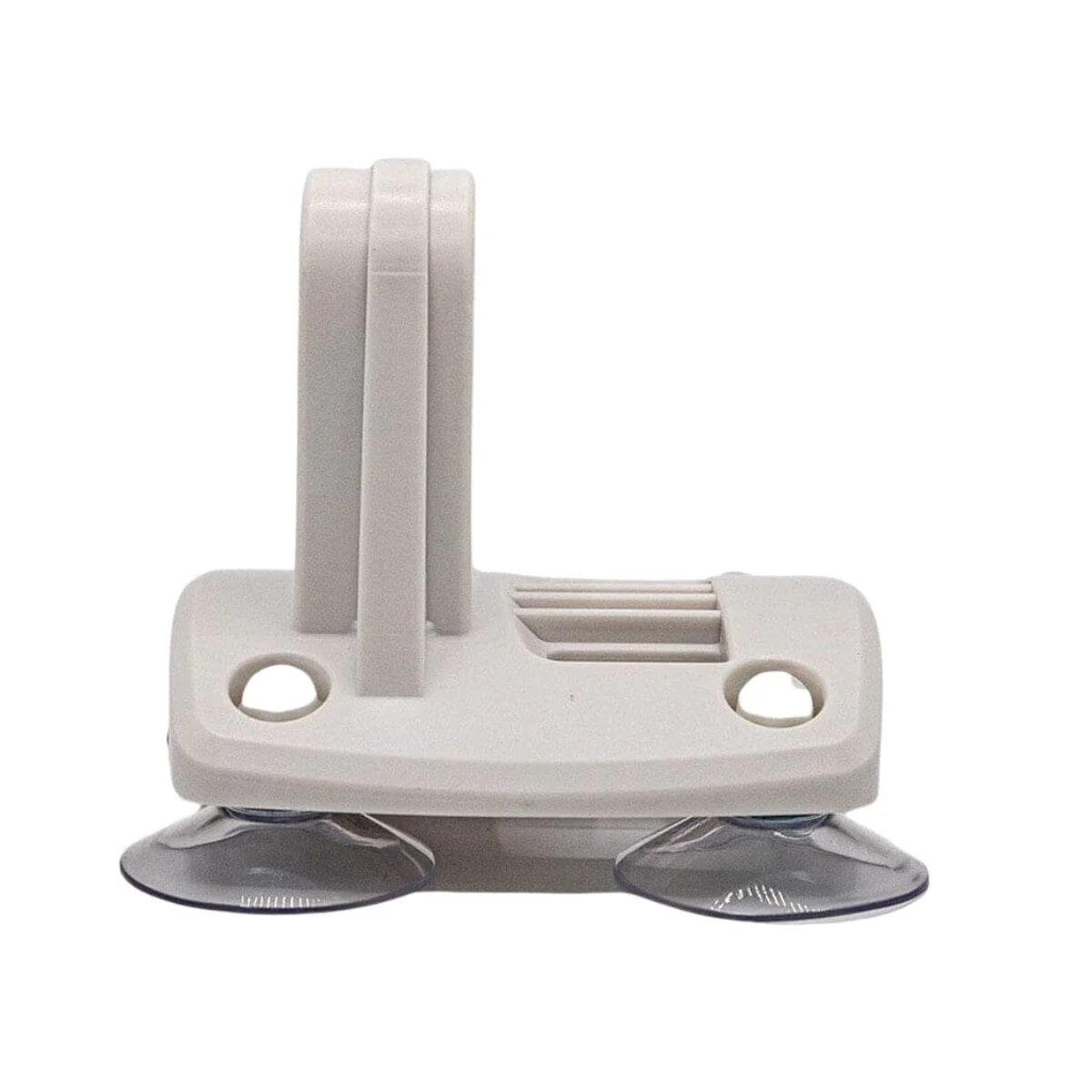

The Beacon includes a suction-cup mount for easy attachment to any surface or window, indoor or outdoor. These suction cups allow a 180-degree swivel motion – perfect for finding your nearest cell tower for optimum signal.
The Beacon is a light in the darkness, a shining marker by which civilization can find you, even when you’re far away. So too with the Bolton Beacon. This easy-to-install two-way antenna can be relied on to improve your cellular signal when paired with a Bolton Victory cell phone signal booster. It can be installed inside or outside and is Bolton Technical’s most versatile antenna.
Requiring no tools to install, it’s the pick if you have weak signal in your house or apartment but have ornery landlords or HOA officials breathing down your neck. With the Beacon, even the most cantankerous won’t be able to find fault. It captures or broadcasts any cellular frequencies in the 617-4000 MHz range.
Contact us at JHB 011 749 3085 or CPT 021 879 3057 or email us at [email protected] with any questions you may have.
Specs
Frequencies & Gains
| 617-806 | 4.5 dB |
| 806-960 | 6 dB |
| 1710-2700 | 7.5 dB |
| 3300-4000 | 6 dB |
| VSWR | ≤2.0 |
| Impedance | 50 Ohm |

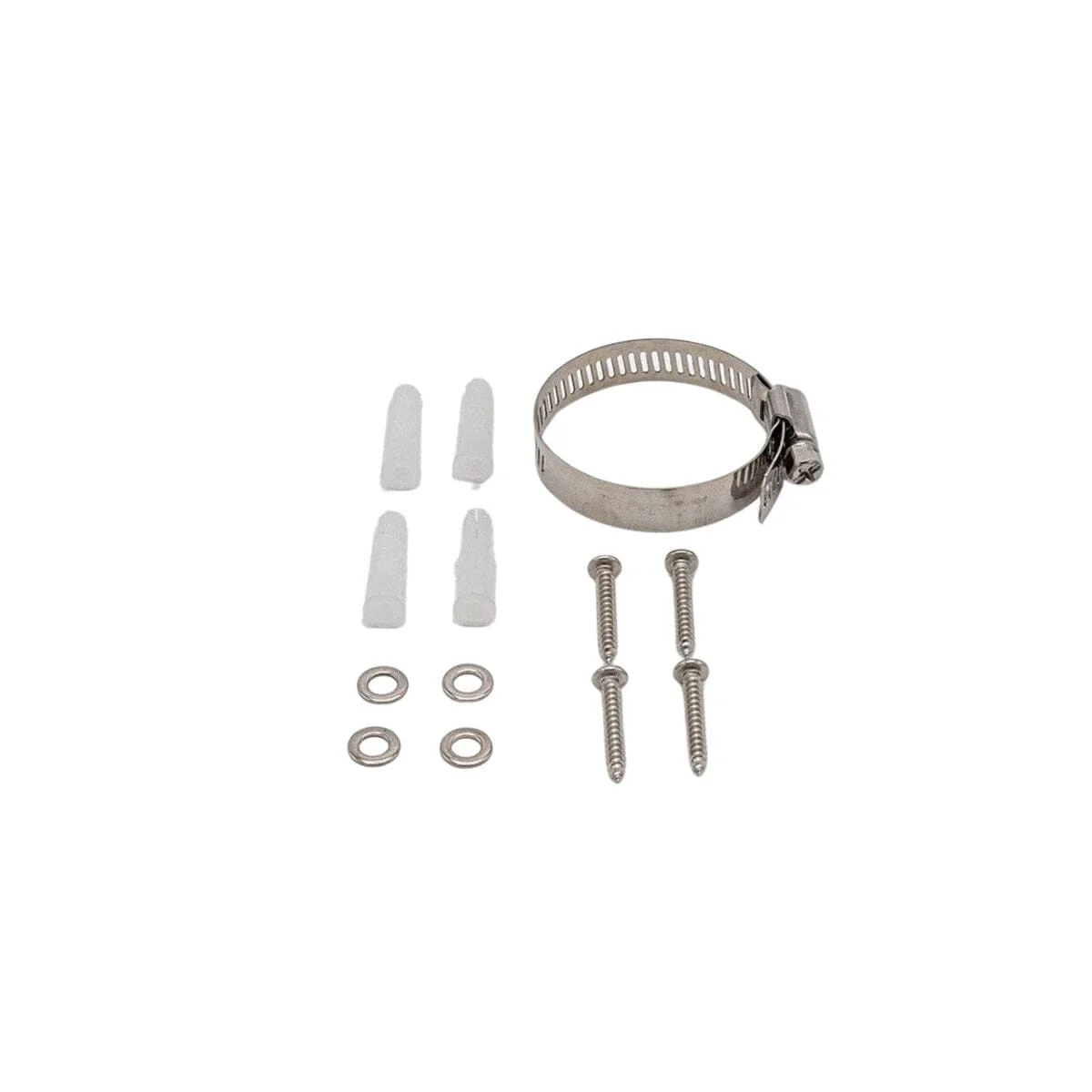

| Mounting Kit |
4 Suction Mounts, Pole Mounting Bracket |
| Connectors | N-Type (F/M) |
| Radome material | ABS, White |
| Ingression Protection Rating | IP 65 |
| Dimensions (mm) | 165 x 155 x 50 |
| Weight (kg) | 0.8 |
| Coax Length | 6m or 1.8m |
| Coax Type | RG174 |
More Images
