Omni Desktop Antenna
TheĀ Omni Desktop antennaĀ is a plug and play, innovative solution for the signal enhancement ofĀ 2G/3G/4G LTE cell signal.

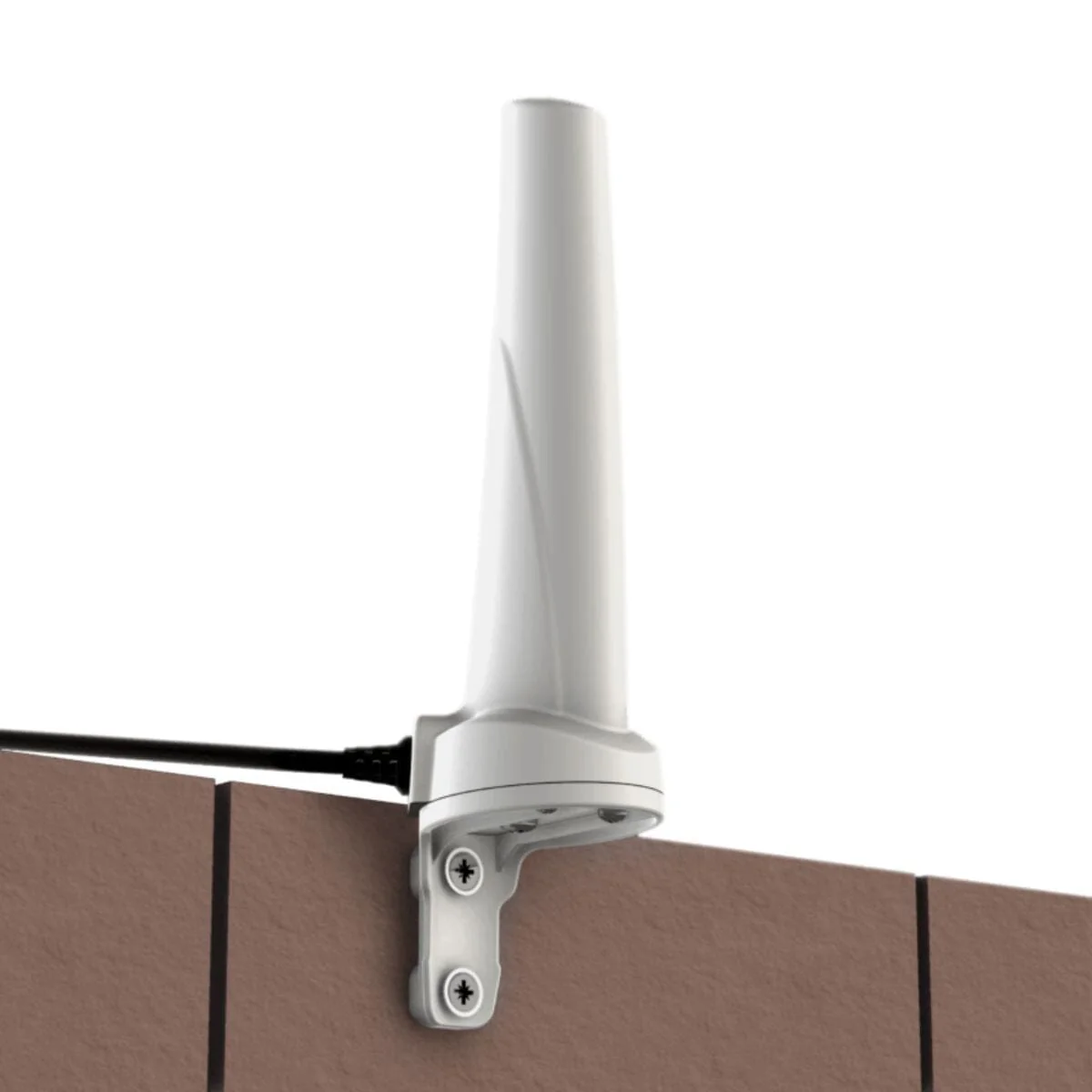

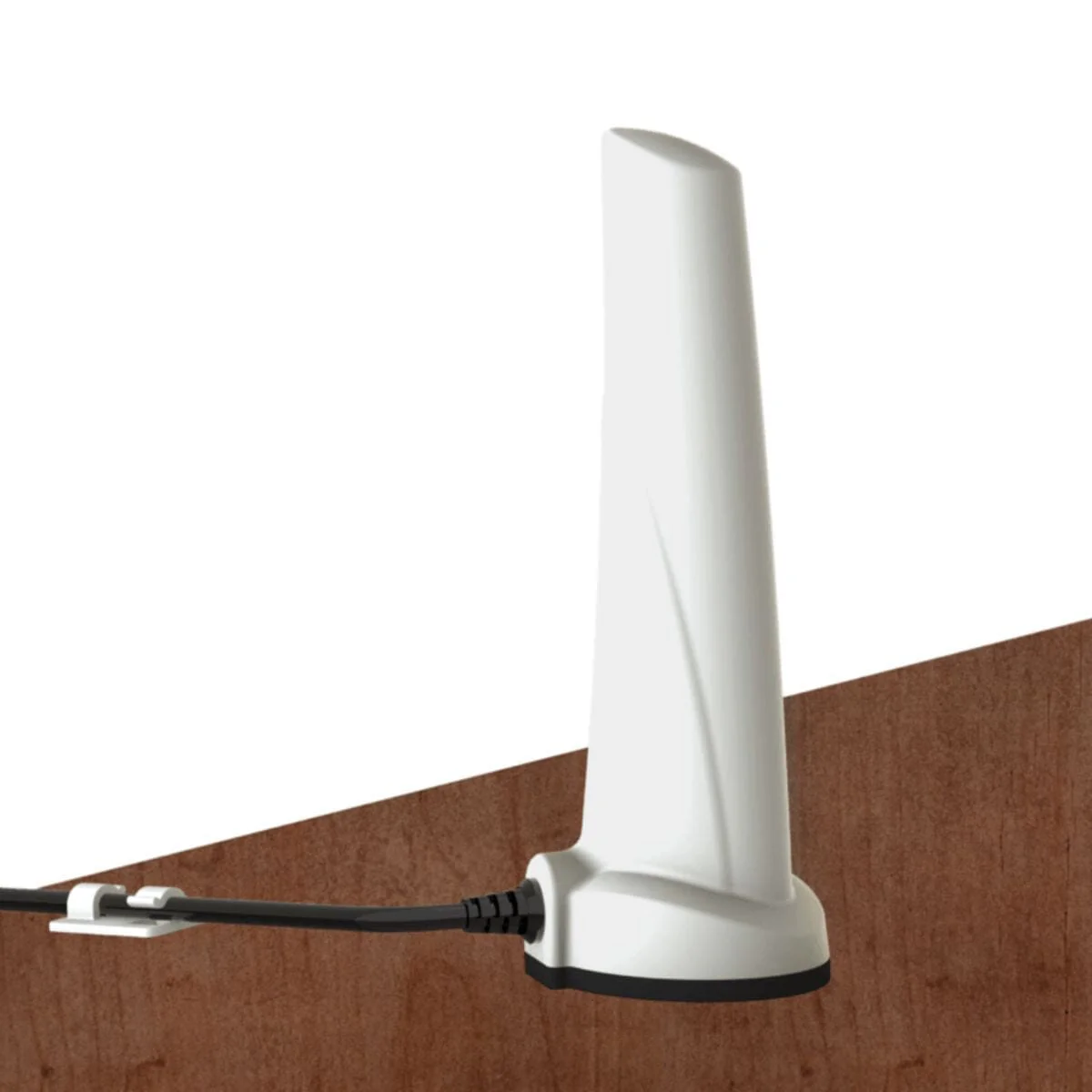

It is a unique magnetic, wall- or pole-mountable, full LTE band antenna that incorporates an ultra-wideband element in a single housing. This antenna is a cost-effective solution for enhancing signal reception and throughput.
TheĀ Omni Desktop antenna increases signal reliability, ensures higher data throughput for users and provides a stable, high quality connection - this improves user experience.
It is ideal for any application using the GSM network (LTE/HSPA/3G/EDGE/ GPRS).
Specs
Frequencies & Gains
| 698-960 MHz | +3.5 dB |
| 1710-2700 MHz | +3.5 dB |
| Polarization | Vertical |
| VSWR | <3:1 across 90% of the bands |
| Impedance | 50 Ohm |
| Feed power handling | 10 W |
| Connectors | SMA-male |
| Radome material | UV resistant PVC |
| Dimensions | 157 mm x 61 mm x 44 mm |
